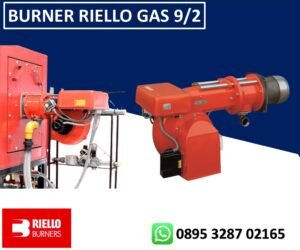

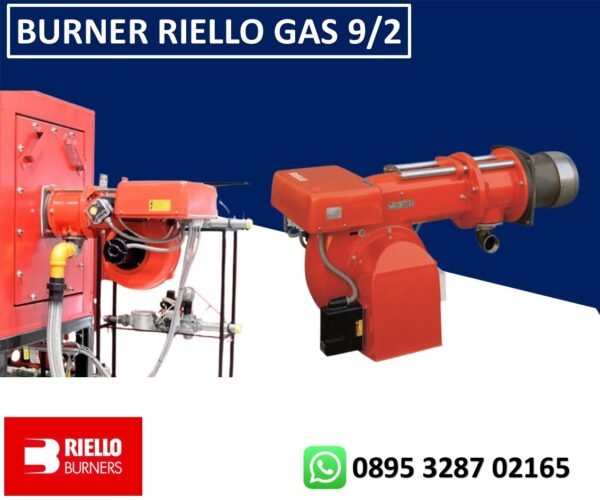

GAS BURNERS (TWO STAGE) GAS 9/2

BAHAN BAKAR GAS ( DUA TAHAP/DUA API )

Seri pembakar GAS/2 mencakup rentang pembakaran dari 1000/1750 ÷ 3200 kW

TECHNICAL DATA

• MODEL GAS 5/2
• OUTPUT (1) 2 nd Stage kW 1750 – 3200 Mcal/h 1500 – 2752
• 1 st Stage kW1000 – 1750 Mcal/h 860 – 1500
• FUEL NATURAL GAS: G20 – G25
• Net calorific value kWh/Nm3 McaL/Nm3 10 8,6
• Absolute density kg/Nm3 0,71-0,78
• – Max delivery Nm3/h 372
• Pressure at maximum delivery (2) mbar 20.3
• OPERATION • Intermittent (min. 1 stop in 24 hours)
• Two-stage (high and low flame) and single-stage (all – nothing)
• STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
• AMBIENT TEMPERATURE °C 0 – 40
• COMBUSTION AIR TEMPERATURE °C max 60
• NOISE LEVELS (3) Sound pressure Sound power dB(A) 82 92

ELECTRIC DATA

• Model GAS 9/2
• Electrical supply V 230 – 400 with neutral ~ +/-10%
• Hz 50 – three-phase
• Electric motor IE2 rpm 2920
• kW 9.2
• V 230/400
• A 29.1/16.8
• Ignition transformer V1 – V2 230 V – 1 x 8 kV
• I1 – I2 1.8 A – 30 mA
• Electrical power consumption kW max 12
• Electrical protection IP 40
