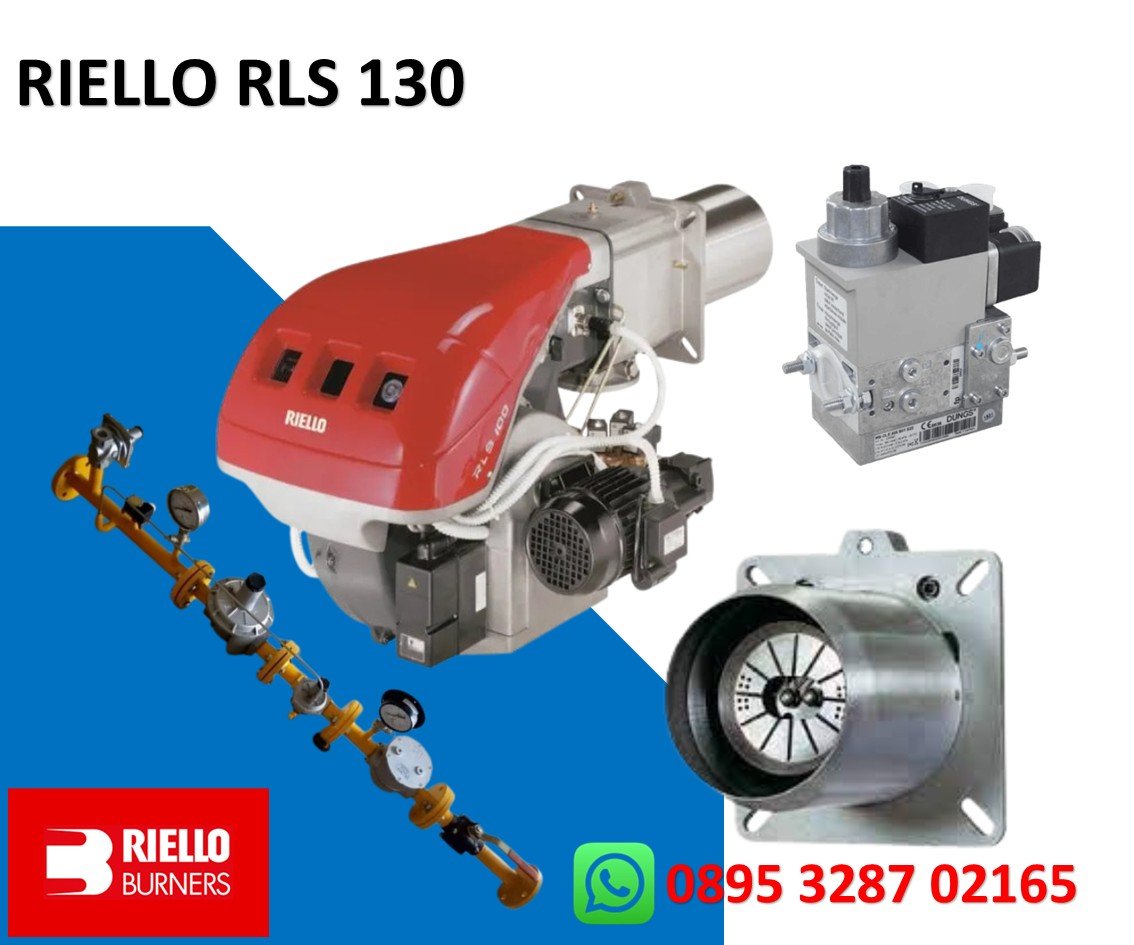

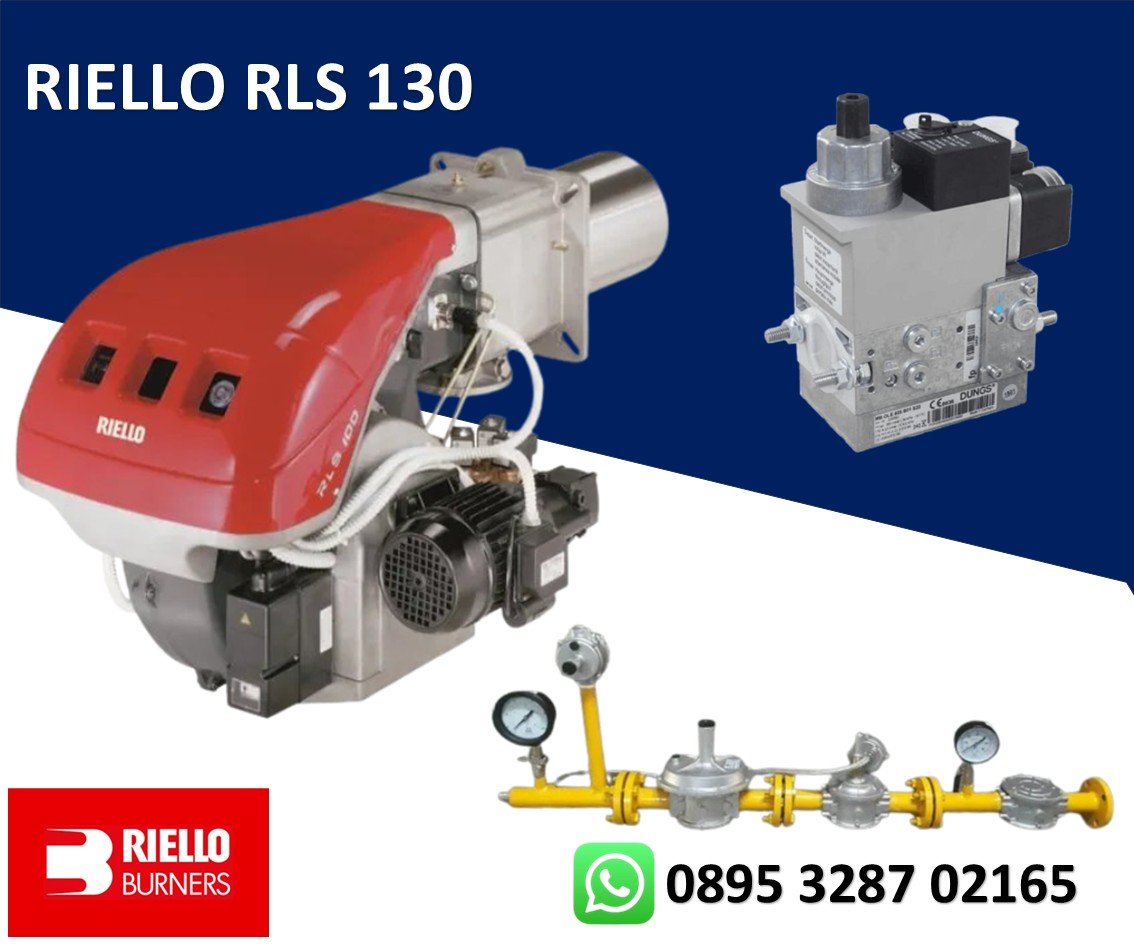

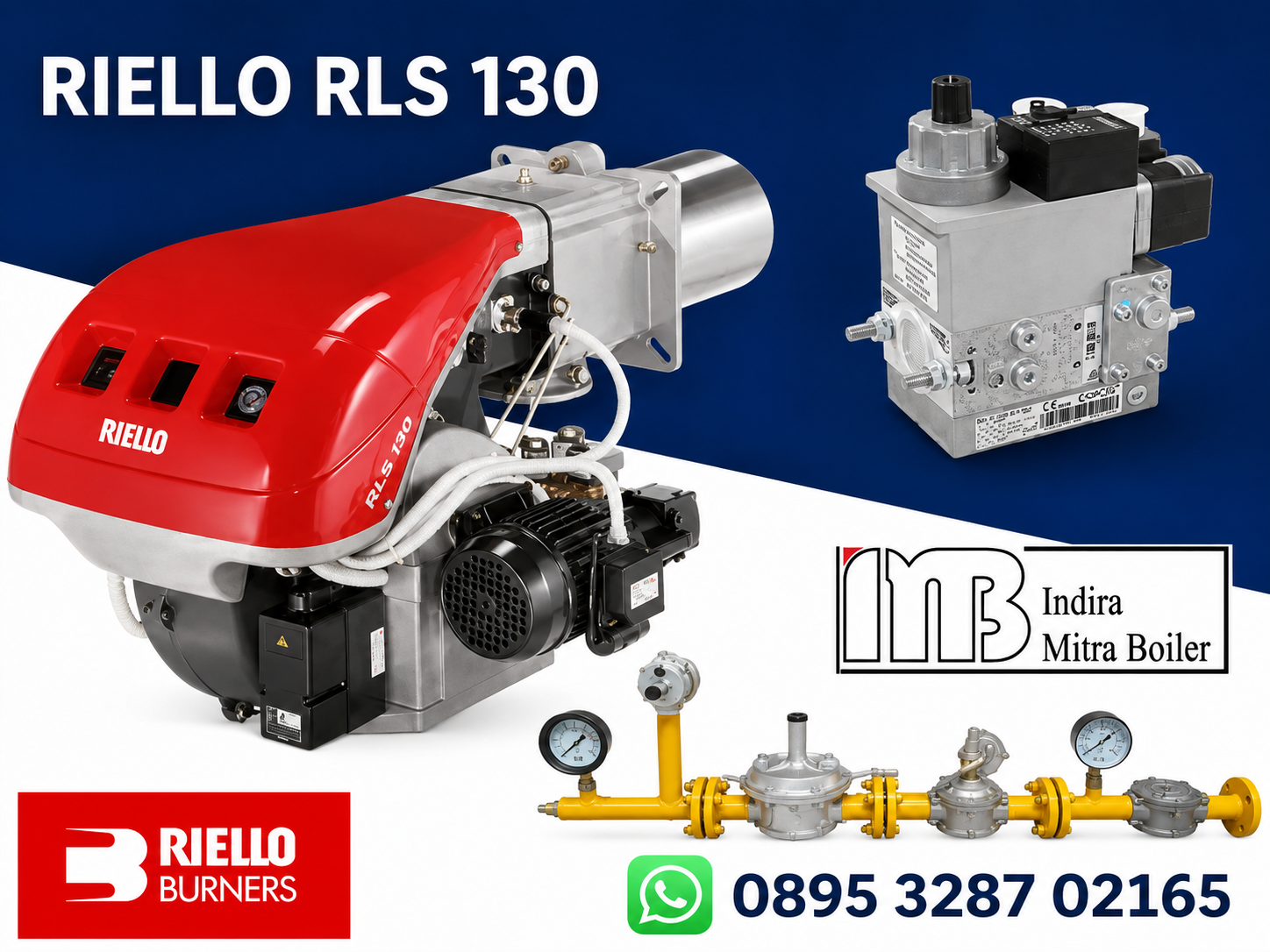

DUAL FUEL BURNER RIELLO RLS 130

DUAL FUEL BURNERS (TWO STAGE) RLS 130

DUA BAHAN BAKAR GAS DAN SOLAR ( DUA TAHAP/DUA API )

Seri pembakar RLS mencakup rentang pembakaran dari 465/930 ÷ 1395 kW

TECHNICAL DATA

• MODEL RLS 130
• TYP 689 T1
• OUTPUT (1)
  • DELIVERY (1)
    2nd stage kW 930 – 1395kW/78 – 118 Kg/h
  • min. 1st stage kW 465 kW / 39,5 Kg/h
• FUEL LIGHT OIL, viscosity at 20 °C: 6 mm2/s max (1,5 °E – 6 cSt)
• NATURAL GAS: G20 (methane) – G21 – G22 – G23 – G25
• GPL – G30 (propane) – G31 (butane)
• Gas pressure at maximum delivery (2) Gas: G20/G25/G31 mbar 10/13/12 – 360
• OPERATION – Intermittent (min. 1 stop in 24 hours)
• – Two-stage (high and low flame) and single-stage (all – nothing)
• NOZZLES number 2
• STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
• AMBIENT TEMPERATUR °C 0 – 40
• COMBUSTION AIR TEMPERATURE °C max 60
• PUMP delivery (at 12 bar)
• pressure range
• fuel temperatur
  • kg/h 220
  • bar 10 – 20
  • ° C max 60
• NOISE LEVELS (3) dBA 80

ELETRIKAL DATA

• ELECTRICAL SUPPLY : V 230 – 400 with neutral +/-10% Hz 50 – three-phaes ~
• ELECTRIC MOTORS : rpm 2860
• Fan motor : V230 / 400, W 2200, A 8,5 – 4,9
• Pump motor
  • Pump motor capacitor
  • V : 220 – 240
  • W : 550
  • A : 2,4
  • µF : 25
• IGNITION TRANSFORMER V1 – V2 : 230 V – 2 x 5 kV
  • I1 – I2 1,9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION : W max 2850
