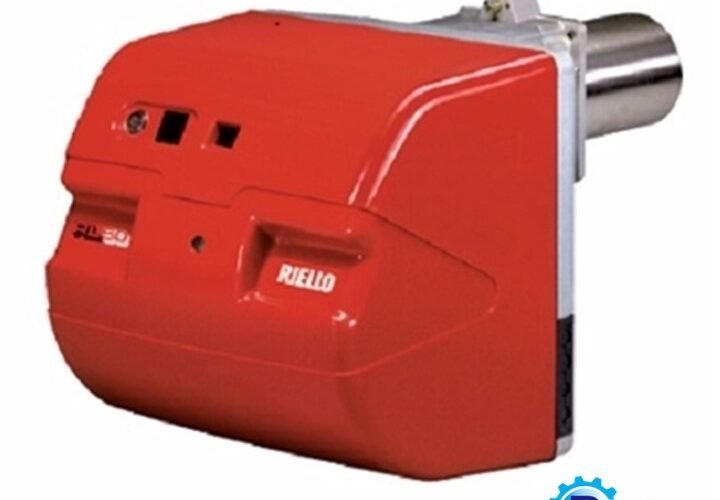

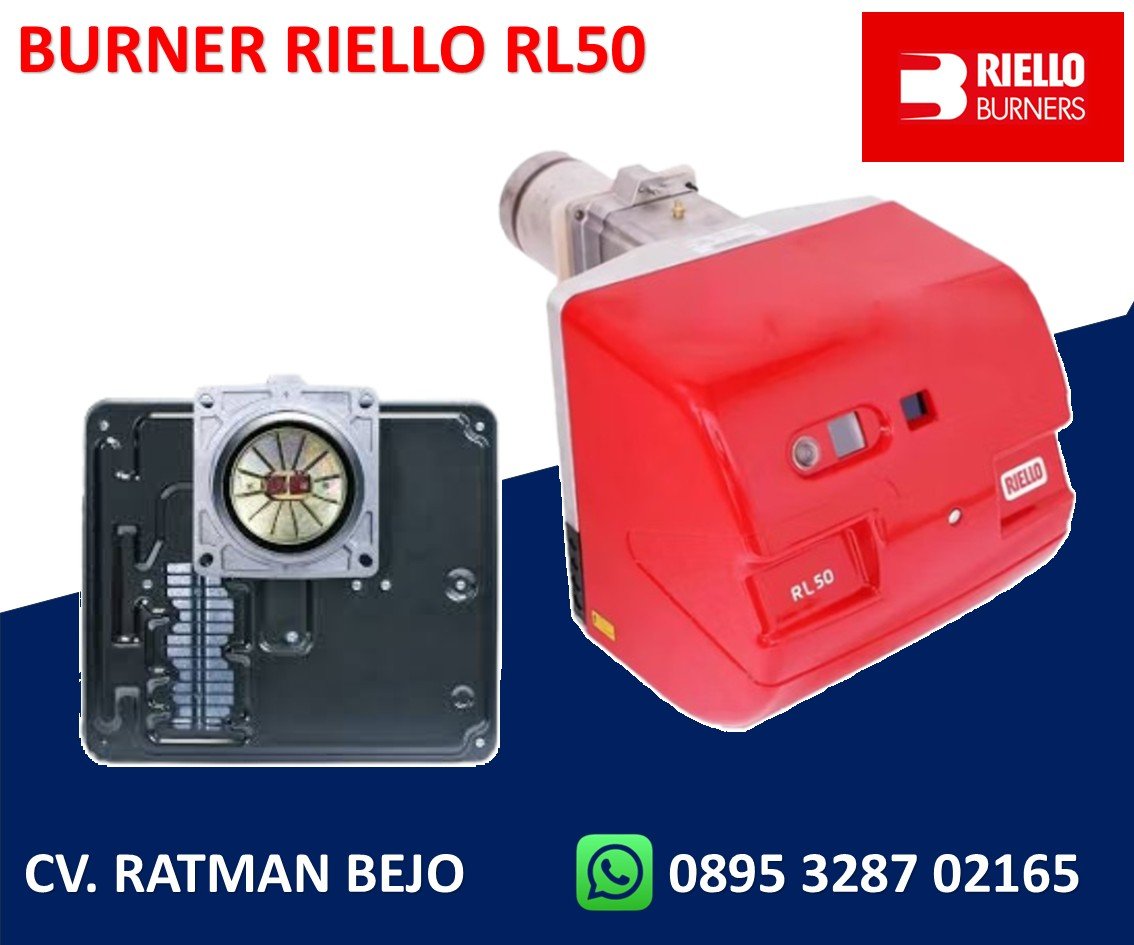

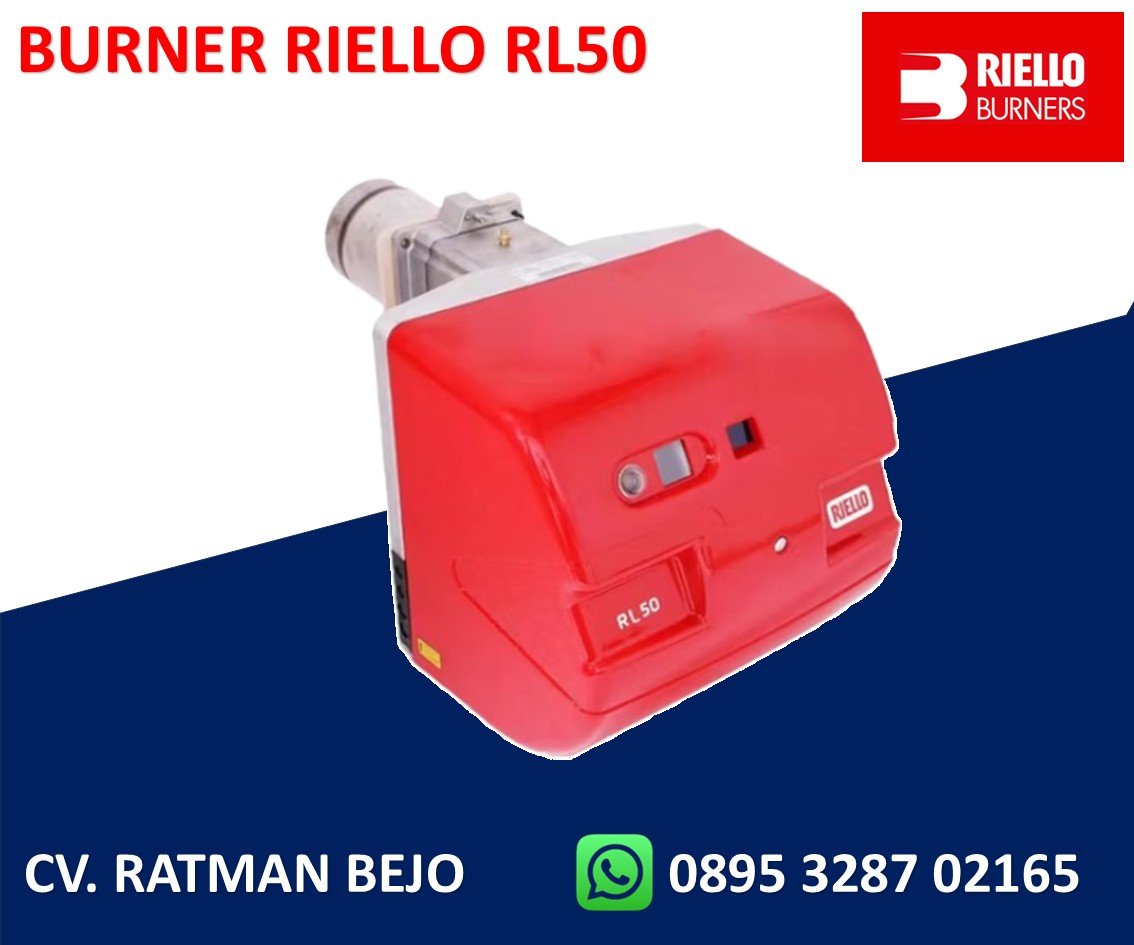

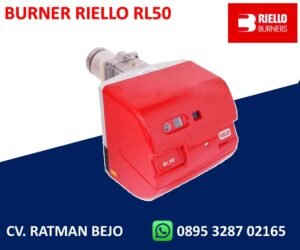

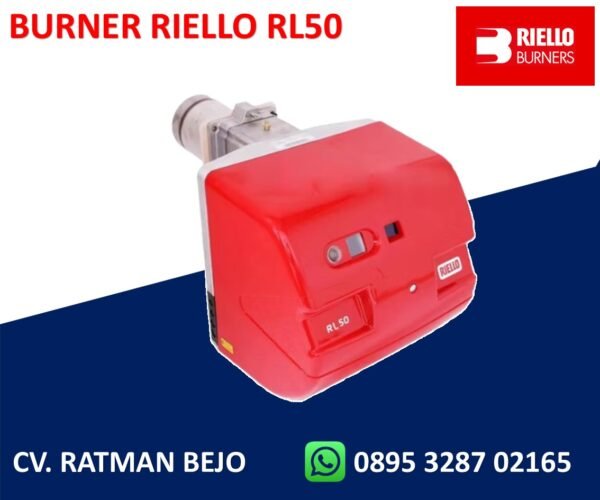

BURNER RIELLO TYPE RL50

LIGHT OIL (TWO STAGE) RL 50

BAHAN BAKAR SOLAR ( DUA TAHAP/DUA API )

Seri pembakar RL mencakup rentang pembakaran dari 148/296 ÷ 593 kW

TECHNICAL DATA

• MODEL RL 50
• Burner operation mode Two stage
• Modulation ratio to max. output 2 ÷ 1
• type —
• Servomotor
• run times–
• Heat output kW 200/400÷820
• Mcal/h172/344÷705
• Kg/h17/38÷69
• Working temperature °C min./max. 0/40
• FUEL/AIR DATA
• Net calorifi c value kWh/kg 11,8
• Kcal/kg 10.200
• Viscosity at 20°C mm2/s (cSt) 4 ÷ 6
• Pump type AL 95C
• output kg/h at 12 bar 107
• Atomised pressure bar 12
• Oil temperature Max. °C 50
• Fan type -2
• Air temperature Max. °C 60
• ELECTRICAL DATA
• Electrical supply Ph/Hz/V -5
• Auxiliary electrical supply Ph/Hz/V -3
• Control box type RMO 88.53
• Total electrical power kW 1,4
• Auxiliary electrical power kW 0,3
• Protection level IP 44
• Power electric motor kW 1,1
• Rated motor current A 4.7 – 2.7
• Motor start current A 24.5 – 14
• Motor protection level IP 55
• Ignition transformer V1 – V2 230V – 2x5kV
