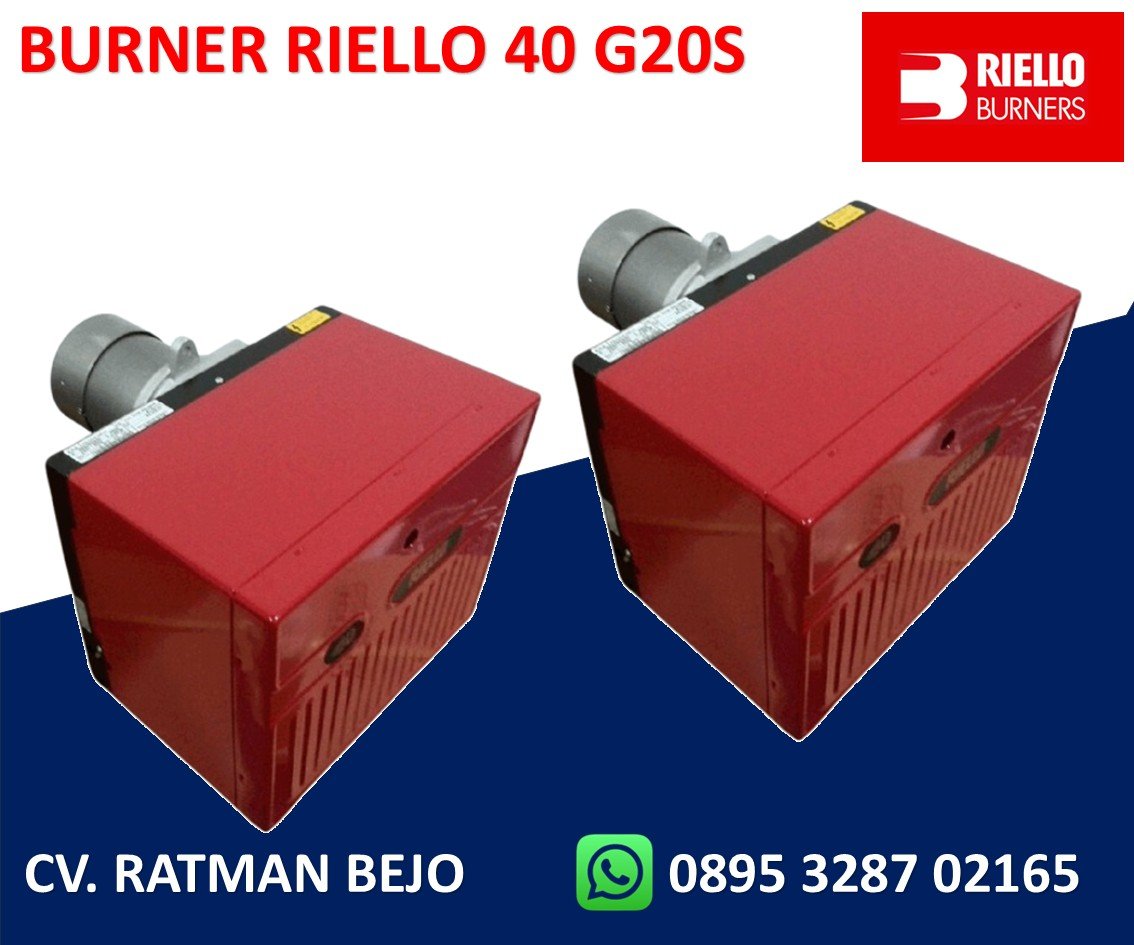

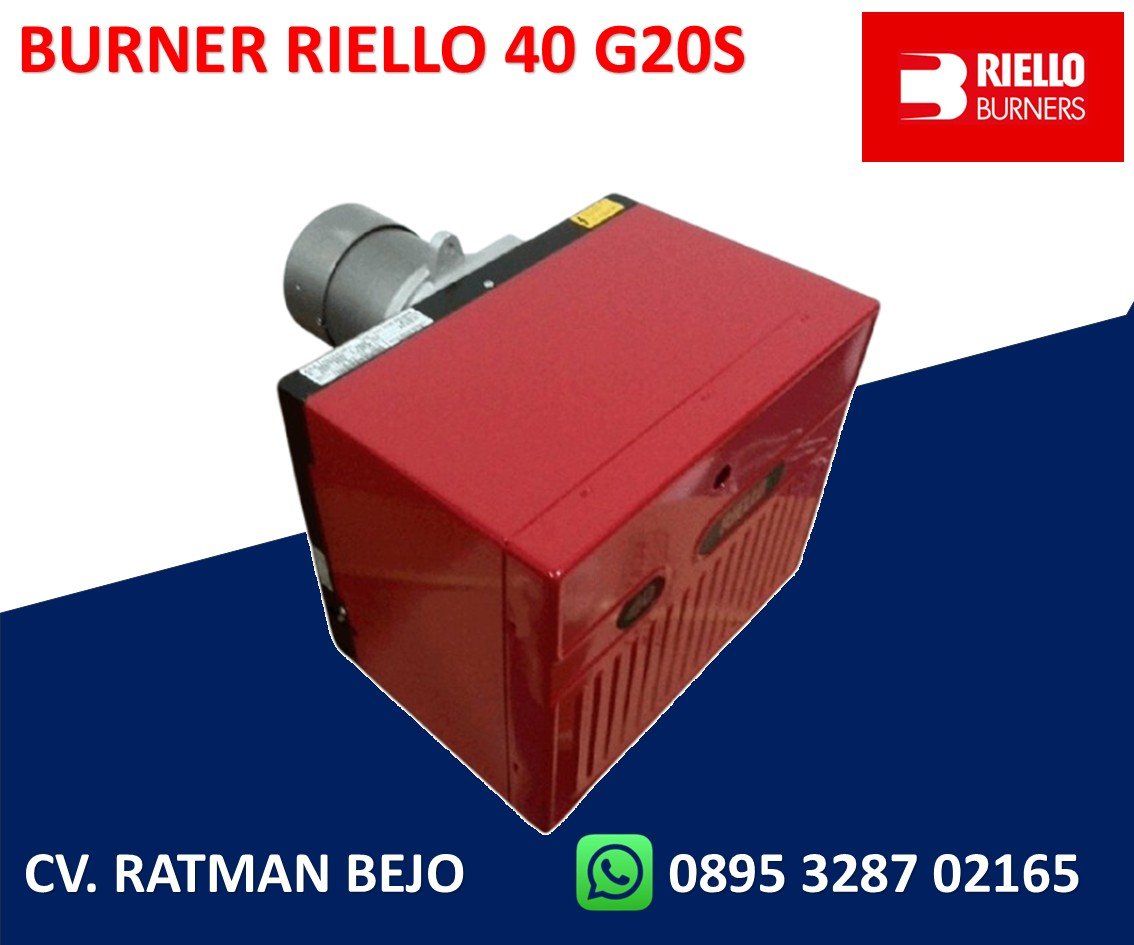

BURNER RIELLO R40 G20S

LIGHT OIL (ONE STAGE) RIELLO 40 G20S

BAHAN BAKAR SOLAR ( SATU TAHAP/SATU NOZZLE)

Seri Riello 40 G20S tersedia dalam sepuluh model berbeda, dengan daya keluaran mulai dari 95 hingga 240 kW

TECNICAL DATA

• Type : 482T50
• Thermal power : – output 95 – 240 kW – 8 – 20 kg/h
• Fuel Gas oil, viscosity : 4 – 6 mm2/s at 20 °C (Hi = 11.86 kWh/kg)
• Blends of gas oil and bio fuel (FAME in accordance with EN 14214) up to 10%
• Electrical supply Single phase, 230V ± 10% ~ 50Hz
• Motor Run current 1.3A – 150W – 2750 rpm – 288 rad/s
• Capacitor 5 F
• Ignition transformer Secondary 8 kV – 16 mA
• Pump Maximum pressure 14 bar (203 psi)
• Absorbed electrical power 0.33 kW
