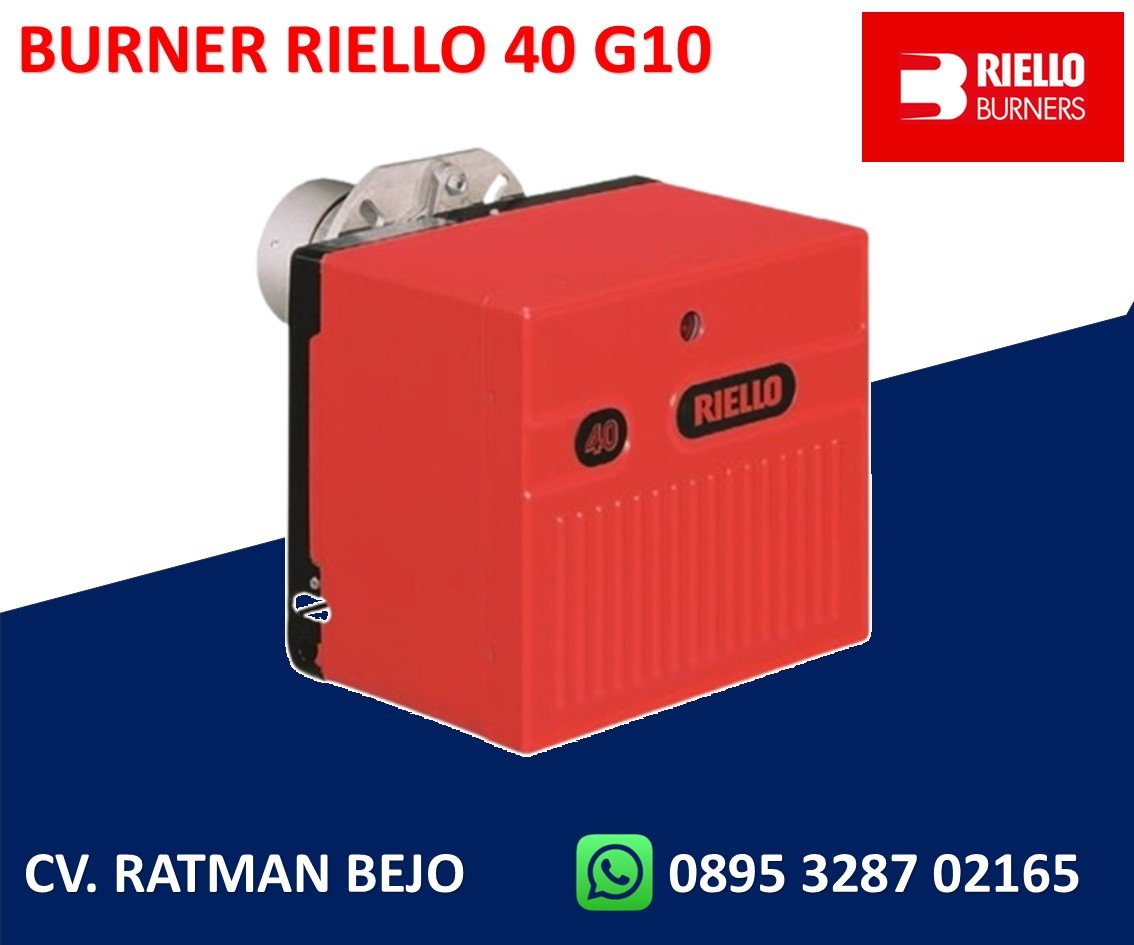

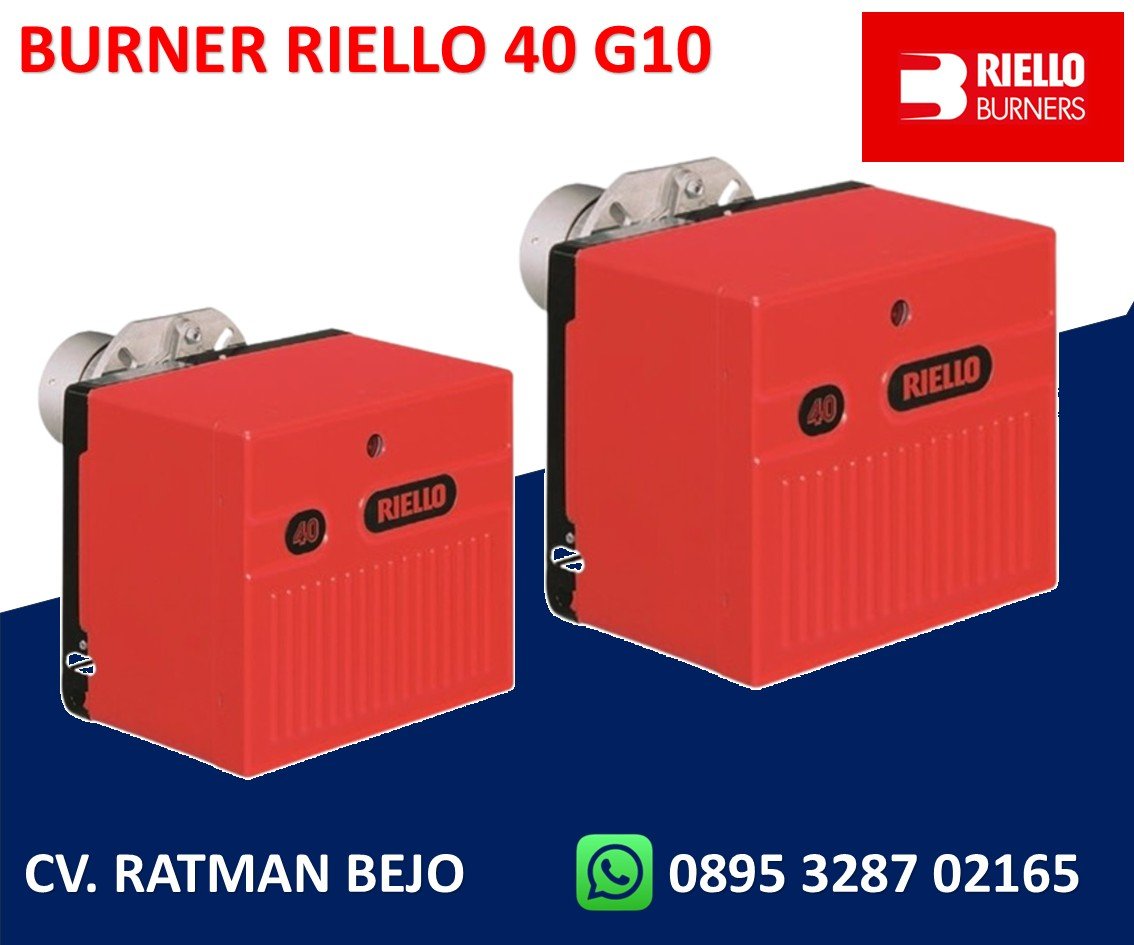

BURNER RIELLO R40 G10

LIGHT OIL (ONE STAGE) RIELLO 40 G10

BAHAN BAKAR SOLAR ( SATU TAHAP/SATU NOZZLE)

Seri Riello 40 G10 tersedia dalam sepuluh model berbeda, dengan daya keluaran mulai dari 12 hingga 120 kW

TECHNICAL DATA

• Type 464 T52
• Thermal power – output 54 – 120 kW – 4.5 – 10 kg/h
• Fuel
  Kerosene, viscosity 1.6 – 6 mm2/s at 20 °C (Hi = 11.97 kWh/kg)
  Gas oil, viscosity 4 – 6 mm2/s at 20 °C (Hi = 11.86 kWh/kg)
• Blends of gasoil and bio fuel (FAME in accordance with EN 14214) up to 10%
• Electrical supply Single phase, ~ 50Hz 230 V ± 10%
• Motor Run current 0.8A – 90W – 2800 rpm – 294 rad/s
• Capacitor 4 F
• Ignition transformer Secondary 8 kV – 16 mA
• Pump Kerosenemaximum pressure 10 bar (145 psi)
• Gas oilmaximum pressure 15 bar (218 psi)
• Absorbed electrical power 0.18 kW
