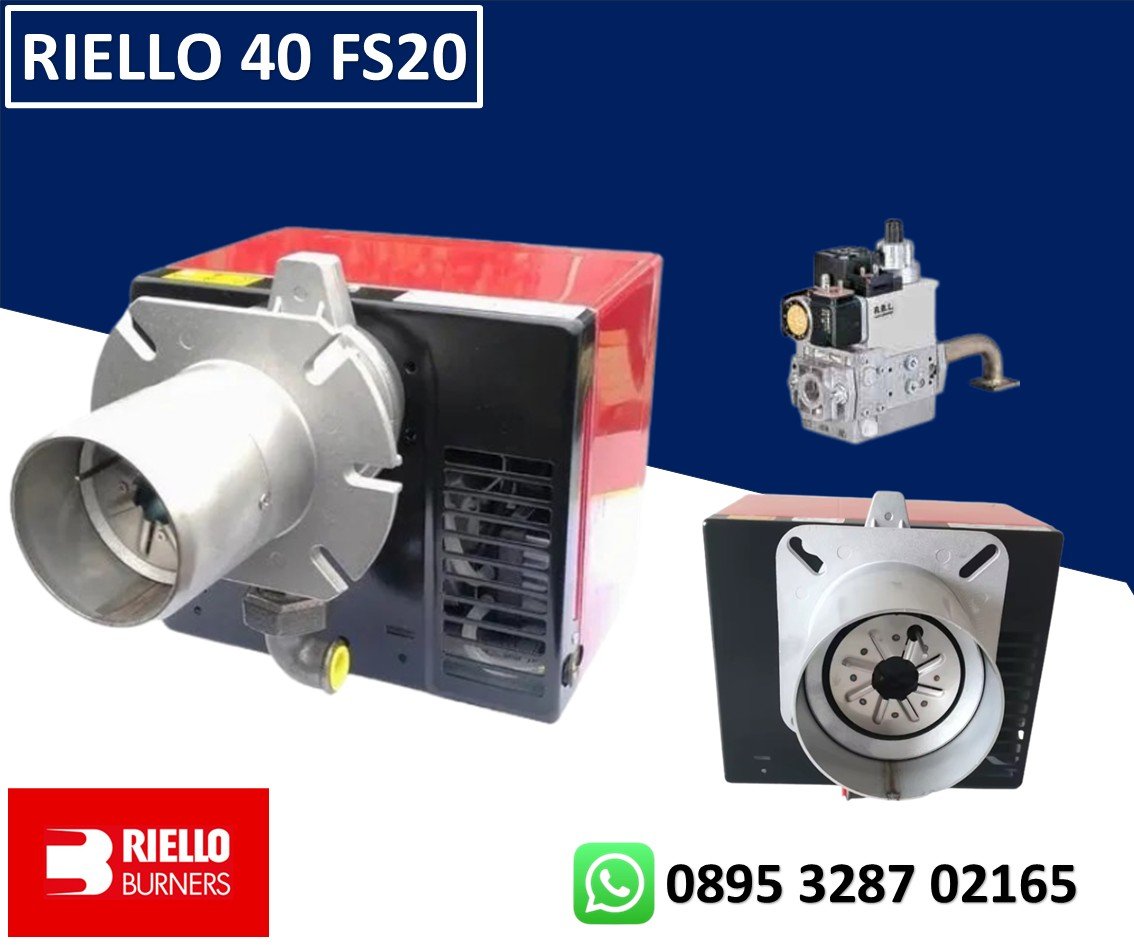

BURNER RIELLO R40 FS20

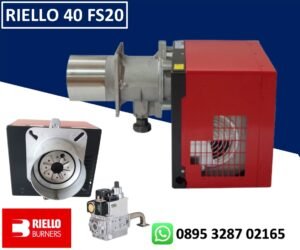

GAS BURNERS (ONE STAGE) RIELLO 40 FS20

BAHAN BAKAR GAS ( SATU TAHAP/ SATU API )

Seri Riello 40 FS tersedia dalam lima model berbeda, dengan output berkisar antara 42 ÷ 116 kW

TECHNICAL DATA

• Model RIELLO 40 FS20
• Type 569T30
• Heat output (Hi) (1) min – max kW 81  220 – kcal/h 70,000  189,000
• Fuel – Family 2 NCV 8  12 kWh/m3 – 7,000 10,340 kcal/m3
• Pressure: min. 26 mbar – max. 360 mbar
• Operation Intermittent (FS1)
• Use Boilers: water and diathermic oil
• Ambient temperature °C 0 – 50
• Combustion air temperature °C max 60
• Electrical supply 1/230V/50Hz
• Fan motor rpm – rad/s 2750 – 288, V – Hz 230 – 50 ,W 150, A 1.3
• Ignition transformer Primary 230V / 1.8A – Secondary 8 kV / 30 mA
• Capacitor F 5
• Absorbed electrical power kW 0.25
• Protection level IP40
• Weight kg 16
• Noise levels (2) Sound pressure
• Sound power dB(A) 66.8 – 78.5
