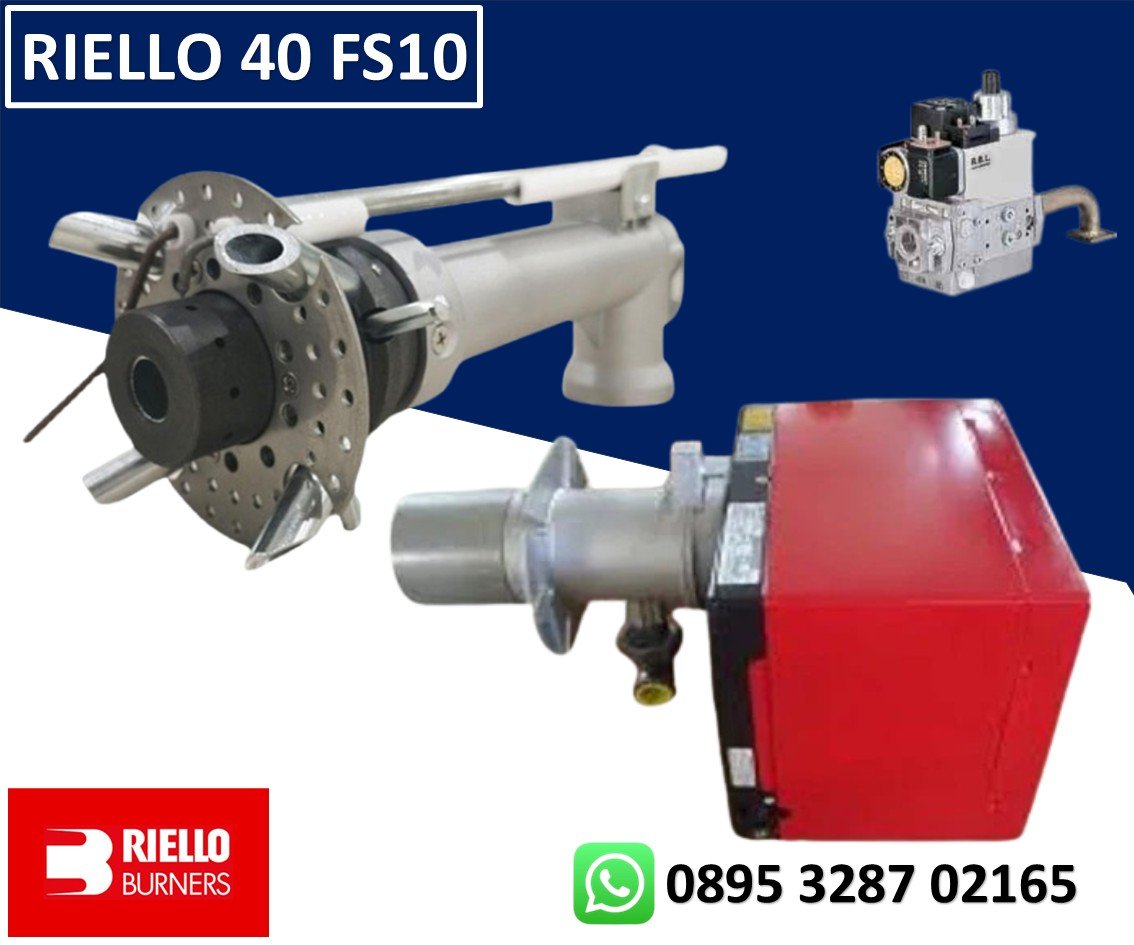

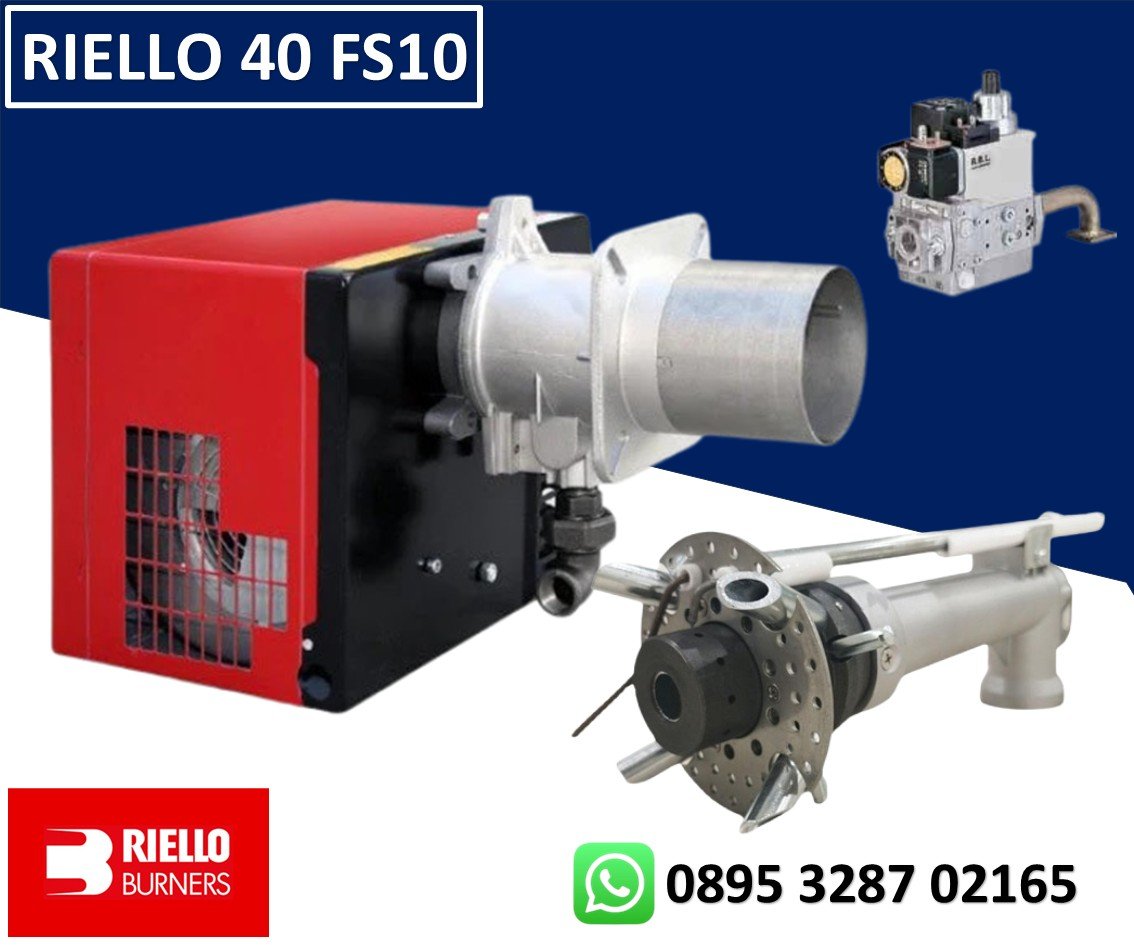

BURNER RIELLO R40 FS10

GAS BURNERS (ONE STAGE) RIELLO 40 FS10

BAHAN BAKAR GAS ( SATU TAHAP/ SATU API )

Seri Riello 40 FS tersedia dalam lima model berbeda, dengan output berkisar antara 81 ÷ 220 kW

TECHNICAL DATA

• Model RIELLO 40 FS10
• Type 564T30
• Heat output (Hi) (1) min – max kW 42  116, kcal/h 36,000  100,000
• Fuel – Family 2 NCV 8  12 kWh/m3 – 7,000 10,340 kcal/m3
• Pressure: min. 18 mbar – max. 360 mbar
• Operation Intermittent (FS1)
• Use Boilers: water and diathermic oil
• Ambient temperature °C 0 – 50
• Combustion air temperature °C max 60
• Electrical supply 1/230V/50Hz
• Fan motor rpm – rad/s 2800 – 294
  V : – Hz 230 – 50
  W : 90
  A : 0.75
• Ignition transformer Primary 230V / 1.8A – Secondary 8 kV / 30 mA
• Capacitor F 4
• Absorbed electrical power kW 0.13
• Protection level IP40
• Weight kg 16
• Noise levels (2) Sound pressure
• Sound power dB(A) 63.1 74.7
