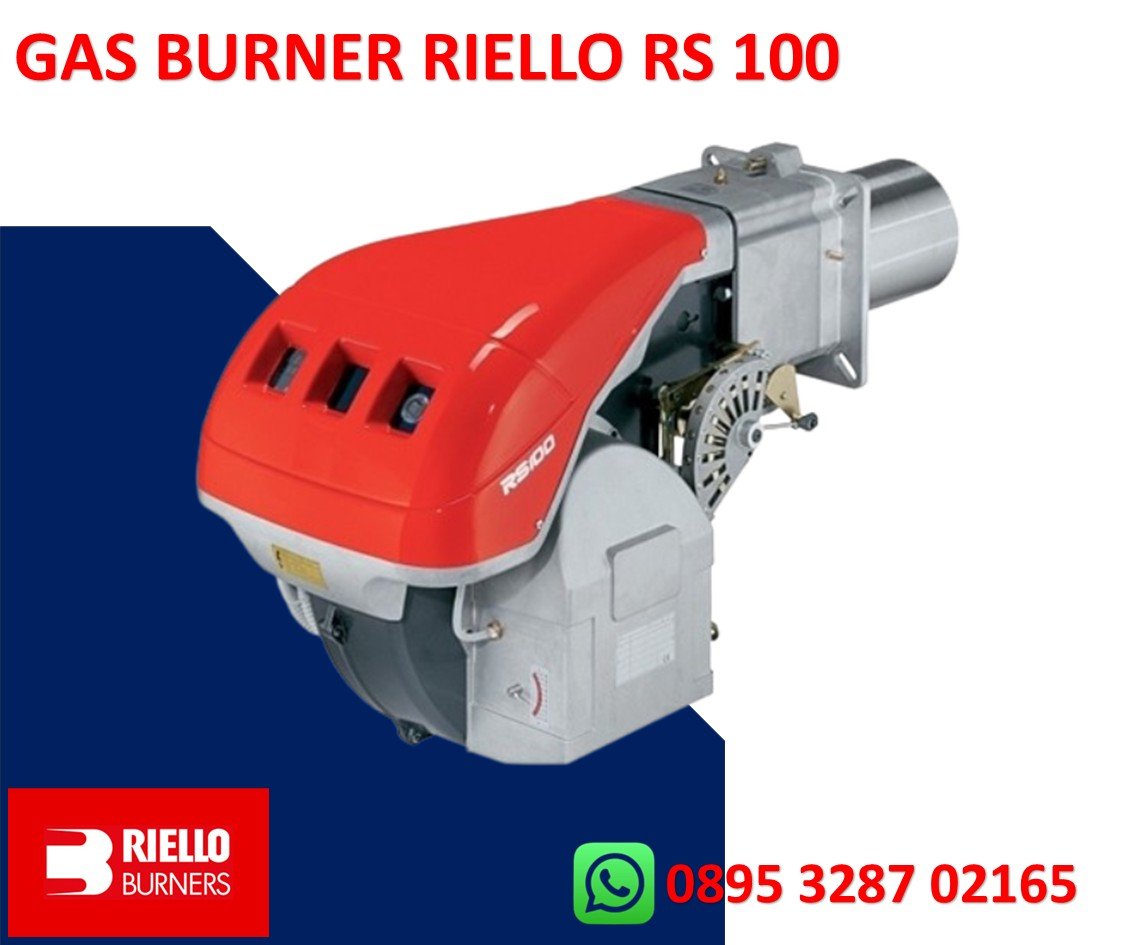

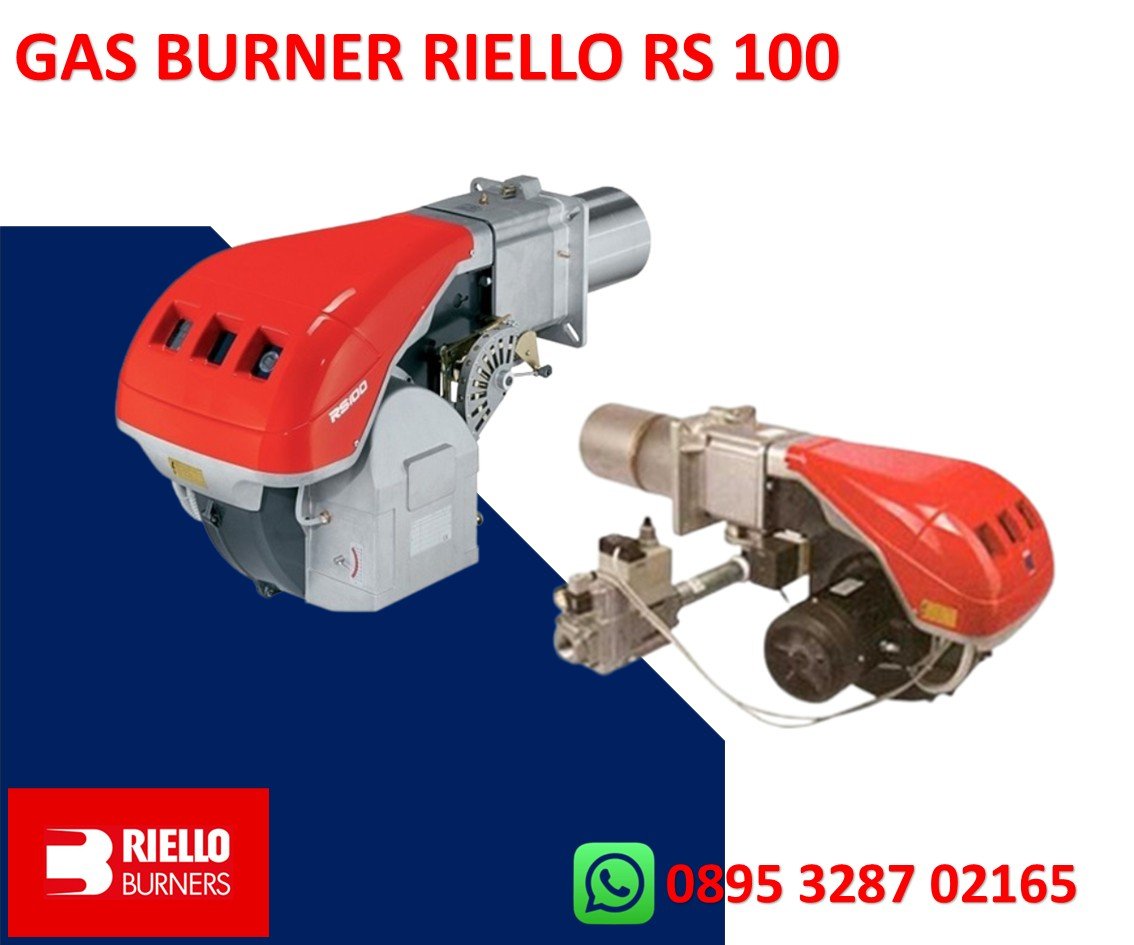

GAS BURNERS (TWO STAGE) RS100

BAHAN BAKAR GAS ( DUA TAHAP/ DUA API )

Seri pembakar RS mencakup rentang pembakaran dari 232/698 ÷ 1163 kW

TECHNICAL DATA

• MODEL RS 100
• TYP 822 T1
• OUTPUT (1) 2nd stage kW 698 – 1163 / Mcal/h 600 – 1000
  min. 1st stage kW 232 / Mcal/h 200
• FUEL NATURAL GAS: G20 – G21 – G22 – G23 – G25
• – Net calorific value G20 G25
• kWh/Nm3 10 – 8,6
• Mcal/Nm3 8,6 – 7,4
• – Absolute density kg/Nm3 0,71 0,78
• – Max delivery Nm3/h 81 94
• – Pressure at maximum delivery (2) mbar 9.3 13.7
• OPERATION • Intermittent (min. 1 stop in 24 hours)
• • Two-stage (high and low flame) and single-stage (all -nothing)
• STANDARD APPLICATION Boilers: water, steam, diethermic oil
• AMBIENT TEMPERATURE °C 0 – 40
• COMBUSTION AIR TEMPERATURE °C max 60
• ELECTRICAL SUPPLY V 220-230 / 460 ~ +/-10%
• Hz 60 – three-phase
• AUXILIARY CIRCUITS SUPPLY V 220 – 230
• ELECTRICAL MOTOR rpm 2860
  W 1500
  V 230/400
  A 5.5 – 3.4
• MOTOR CAPACITOR µF/V 6.3/450 16/450
• IGNITION TRASFORMER V1 – V2 230 V – 1 x 8 kV
  I1 – I2 1 A – 20 mA
• ELECTRICAL POWER CONSUMPTION W max 1800
• ELECTRICAL PROTECTION IP 44
• IN CONFORMITY WITH DIRECTIVES 2006/42/EC – 2014/35/UE – 2014/30/UE
• NOISE LEVELS (3) SOUND PRESSURE SOUND POWER dB(A) 77 88
