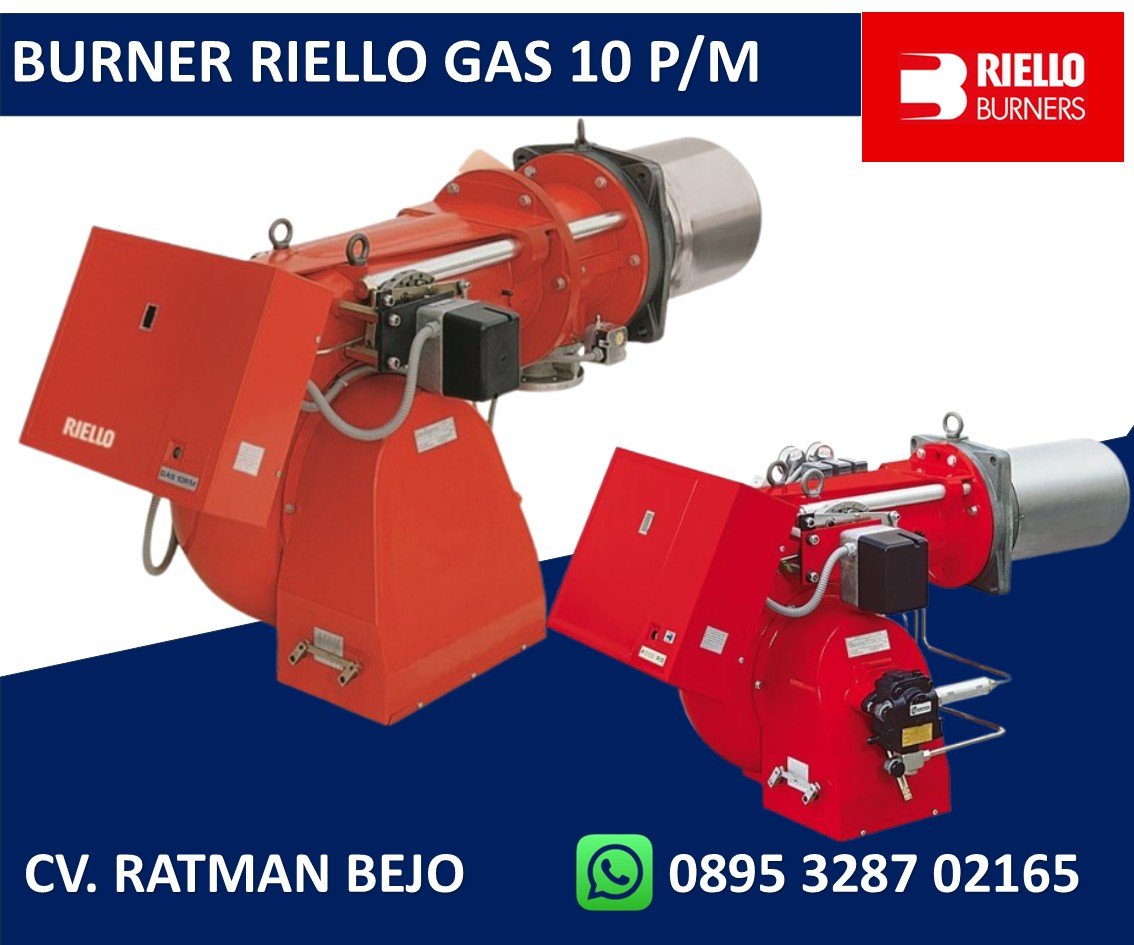

BURNER GAS MODULATING GAS 10 P/M
GAS BURNERS (MODULATING) GAS 10 P/M
BAHAN BAKAR GAS ( PEMBAKARAN GAS MODULASI )
Seri GAS P/M mencakup rentang pembakaran dari 1140/2441 ÷ 4885 kW
TECHNICAL DATA
- MODEL GAS 10 P/M
- Type 540 T1
- Output (1) 2nd stage kW Mcal/h : 2441 – 4885 kW, 2100 – 4200 Mcal/h
- 1st stage kW Mcal/h : 1140 – 2441 kW, 980 – 2100Mcal
- Fuel NATURAL GAS: G20- G25 G20 G25 G20 G25 G20 G25
- – Lower calorific value kWh/Nm3 Mcal/Nm3 : 10 8,6 8,6 7,4
- – Absolute densitykg/Nm3: 0,71 0,78
- – Max delivery Nm3/h: 488 568
- – Pressure at maximum delivery (2) mbar: 32,4 48,4
- OPERATION – Continuous (FS2)
- These burners are suitable also for intermittent operation with the only use of the UV flame sensor kit
- – Progressive two-stage or modulating by kit (see ACCESSORIES)
- Standard applications Boilers: water, steam, diathermic oil
- Ambient temperature °C: 0 – 40
- NOISE LEVEL (3) Sound pressure
- Sound powerdB(A): 90 100
- Combustion air temperature °C max: 60
Electrical data
- MODEL GAS 10 P/M
- Type : 541 T1
- Electrical power supply : 3 ~ 230 – 400V +/- 10% 50 Hz
- Electrical motor IE3 :
- rpm: 2920
- kW: 15
- V: 230/400
- A: 46.8 – 27
- Ignition transformer : V1 – V2 230 V – 1x 8 kV
- I1 – I2 1.5 A – 30 mA
- Absorbed electric power : kW max 10.6
- Protection level : IP40
